Laser

With the versatile laser machines using fiber and CO2 from Hölzer Systemtechnik, you can make permanent, fast labeling. You can label and engrave almost any material. Easy handling thanks to our user-friendly software. We are happy to provide you with a rental device, including operating personnel available to assist you.

Fiber

These fiber lasers have unique properties, such as Electro-optical efficiencies up to over 30%, outstanding beam quality with M2 <1.1 in the single-mode fiber laser structure, M2 <1.2 in the double-clad fiber, a long service life (> 20,000 hours) and a compact, maintenance-free and non-sensitive structure.

CO2

In addition to solid-state lasers, this type of laser is one of the most powerful and most commonly used lasers in the industry. Here, a beam of infrared light with a wavelength in the bands of 9.4 and 10.6 µm is generated. CO2 lasers are efficient and cost-effective, which is why they are mainly used in industrial material processing.

The laser marking machines from Systemtechnik Hölzer can be used to mark a wide variety of materials. The decisive factors are laser power, a beam source and wavelength (fiber, CO2, UV). Depending on the area of application and requirements, we offer flexible stand alone machines, inline machines for cycle time optimization and OEM laser systems for integration.

Here are a few examples:

  • Hard metal
  • Aluminum
  • FR2 / FR4 composite materials
  • Acrylic
  • Ceramics
  • Copper
  • Plastics
  • Brass
  • Wood
  • Leather
  • Plant leaves
  • Fruit/Vegetable

The following are a small selection of options for how your laser device could be designed so that you can integrate it into your production chain as effectively as possible.

LAS 20 Standlaser

Compact ALL-IN-ONE fiber laser with electrically, adjustable Z-Axis and Pilotlaser.

More

LAS 22 Tablelaser

Compact Tablelaser for small parts with automatic Z-Axis function

More

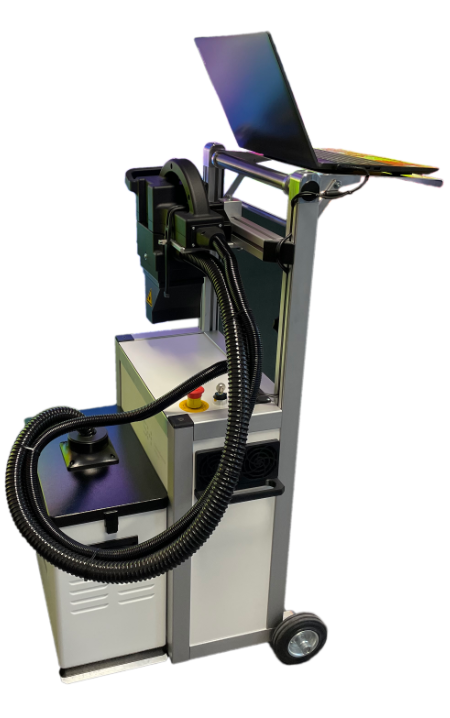

LAS 23 Mobile Laser

Mobile marking laser with hand laser part. It can be used universally for large components

More

LAS 26 open system

Built-in laser system for integration into your production or as an open Laser system with a protective wall.

More

LAS 27

Universally applicable Laser with three axis system for marking areas that are difficult to access.

More

LAS 28

Compact laser with large marking area. Can be individually adapted for long components.

More

3D Laser

3D Laser with automatic focusing and electrically adjustable Y and Z Axes

More
